RS-403-14- Feather finial rear sight 13/16 & 7/8 oct bbls Rear sight with a feather finial for 13/16" & 7/8" octagon or swamped barrels. Dovetail is .757 long and .052 (1/20") deep. Sight is .230 tall with a .535 base width.
|
|
|
|
|
|  |
RS-AT-14 - Rear sight for 7/8 , 15/16 & 1 octagon barrelsRear sight for 7/8" , 15/16" & 1" octagon barrels. Dovetail is .495 long and .050 (1/20") deep. Sight is .170 tall with a .529 base width.
|
|
|
|
|
|  |
RS-BH-14 - Buckhorn rear sight for 13/16, 7/8 barrelsBuckhorn rear sight for 13/16", 7/8" octagon barrels. Dovetail is .375 long and .050 deep. Sight is .250 tall with a .529 base width.
|
|
|
|
|
| |
RS-BH-16 - Buckhorn rear sight for 7/8 - 1 barrels Buckhorn rear sight for 7/8", 15/16" or 1" octagon barrels. Dovetail is .435 long and .050 deep. Sight is .250 tall with a .590 base width.
|
|
|
|
|
|  |

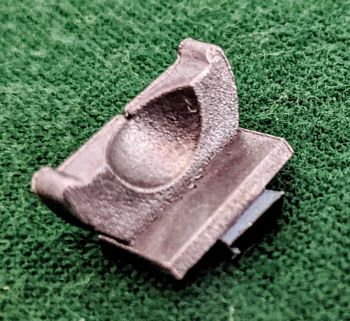

RS-CT-16 - Cast rear sight in steelNice wax cast rear sight suited for many projects. Blade measures .275 tall. Dovetail measures .375 (3/8) front to back. Sight base is .612 wide x .055 deep.
|
|
|
|
|
|  |
RS-DE-16 - Rear sight for up to 1 barrels Steel rear sight for up to 1" barrels. Dovetail is .340 long and .055 deep. Sight is .311 tall with a .525 base width.
|
|
|
|
|
|  |
RS-FG-14 - Rear sight for 13/16 & 7/8 octagon barrelsRear sight for 13/16" & 7/8" octagon barrels. Dovetail is .675 long and .052 (1/20") deep. Sight is .260 tall with a .528 base width.
|
|
|
|
|
|  |

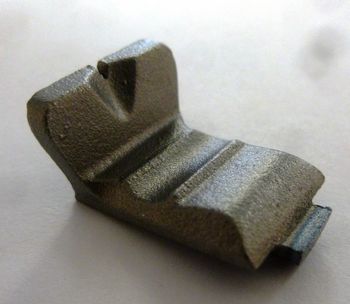

RS-FG-14T - Rear sight for 13/16 & 7/8 octagon barrels Tall rear sight for 13/16" & 7/8" octagon barrels. Dovetail is .755 long and .052 (1/20") deep. Sight is ..380 tall with a .537 base width.
|
|
|
|
|
|  |

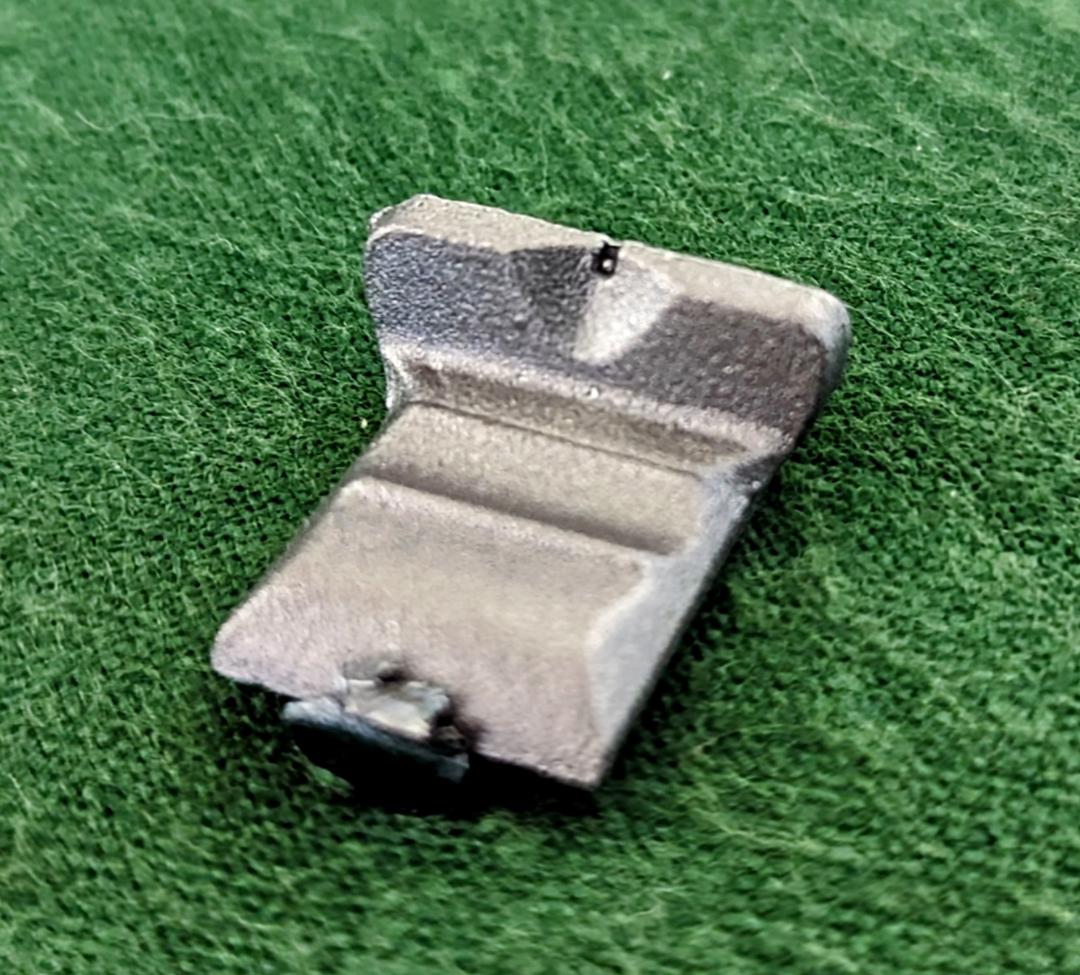

RS-FG-16 - Rear sight for 15/16 & 1 octagon barrelsRear sight for 15/16" & 1" octagon barrels. Dovetail is .720 long and .055 deep. Sight is .260 tall with a .580 base width.
|
|
|
|
|
|  |

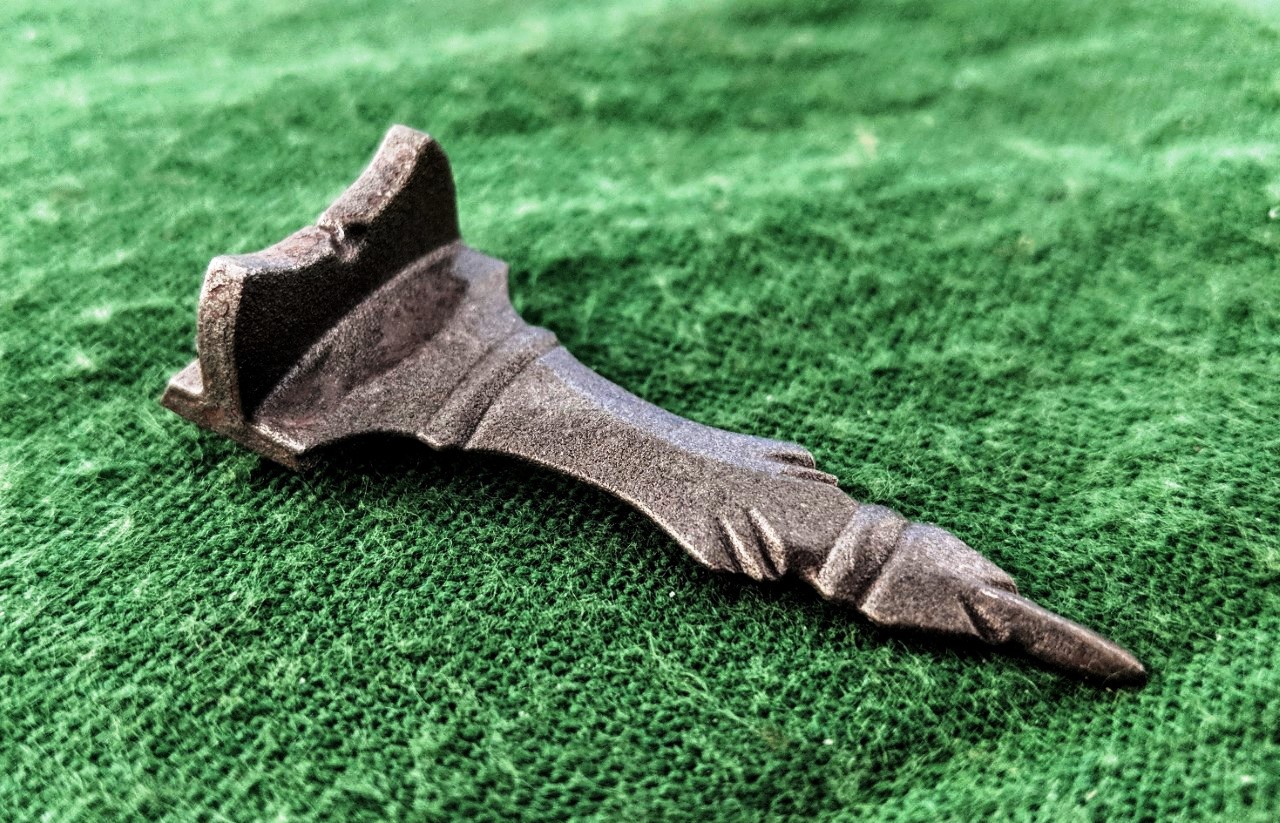

RS-FJ-I - Jeagar style rear sight Jeager style steel rear sight. Dovetail is .370 long and .055 to .062 deep. Sight is .250 tall with a .700 base width.
|
|
|
|
|
|  |

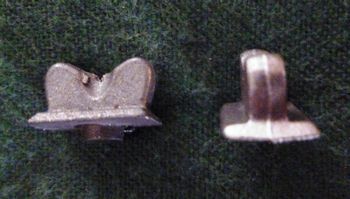

RS-HL-16 - Leman rear sight for 7/8, 15/16 & 1 octagon barrelsLeman style rear sight for 7/8, 15/16 & 1" octagon barrels. Dovetail is .365 long and .052 (1/20") deep. Sight is .200 tall with a .562 base width.
|
|
|
|
|
|  |
RS-LB-14 - Long base rear sight Long base steel rear sight. Dovetail is 1.00 long and .055" deep. Sight is .270 tall with a .535 base width.
|
|
|
|
|
| |
RS-LB-16 - Long base rear sight ***OUT OF STOCK***Long base steel rear sight. Dovetail is 1.00 long and .055" to .062" deep. Sight is .300 tall with a .585 base width. ***OUT OF STOCK***
|
|
|
|
|
|  |
RS-LH - Rear sight for up to 1 barrelsLehigh or Allentown style steel rear sight for up to 1" barrels. Dovetail is .490 long and .055 to .062 deep. Sight is .199 tall with a .575 base width.
|
|
|
|
|
|  |
RS-SB1-14 - Small rear sight for 13/16, 7/8 & 15/16 octagon barrelsVery small rear sight for 13/16", 7/8" & 15/16" octagon barrels. Dovetail is .380 long and .050 (1/20") deep. Sight is .260 tall with a .534 base width.
|
|
|
|
|
|  |

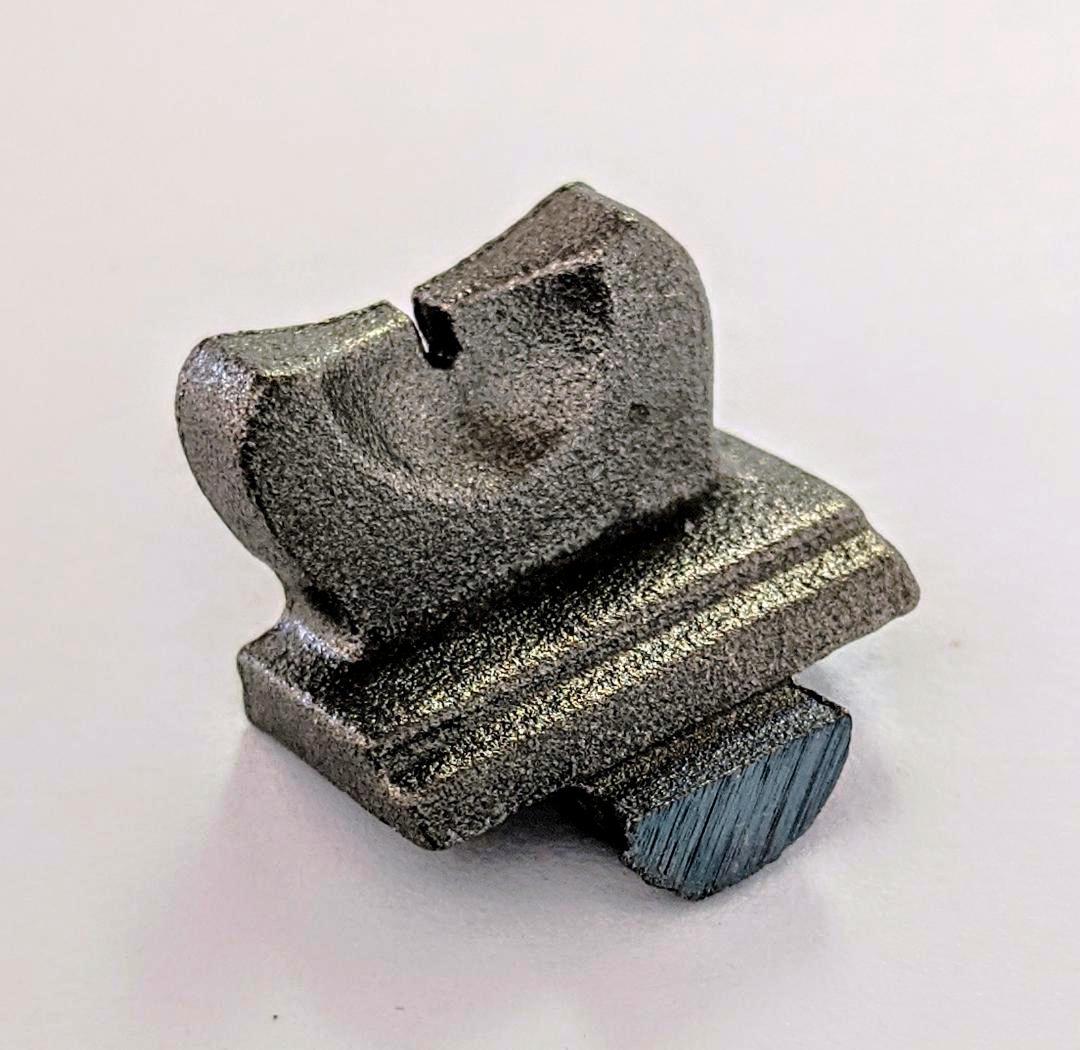

RS-SB1-16 - Small rear sight for 1 octagon barrelsSmall rear sight ideal for use on 1" octagon barrels. Sight is .285 tall with a .372 dovetail base width (a bit under 3/8") and depth of .0587.
|
|
|
|
