16490 - Low Silver Blade on 1/16” thick Brass base Front Sight with 3/8" dovetail with 1/16" thick base. Blade measures .175” Tall x .050 thick.
|
|
|
|
|
|  |

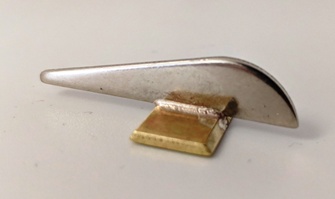

16495 Medium blade silver front sight with a thin brass baseFront sight with a medium silver blade on 1/16" thick brass base. (Thinner base that most of the others.) For a 3/8” dovetail. Blade measures .275 tall x .050 thick.
|
|
|
|
|
|  |
16500 - Medium Silver Blade on 3/32” thick Brass Base Front Sight with 3/8" dove tail. 3/32" brass base. Blade measures .275 Tall x .050 thick.
|
|
|
|
|
|  |
16505 - High Silver Blade on 3/32” Thick Brass BaseFront Sight with 3/8" dove tail. Blade is .400 tall x .050 thick.
|
|
|
|
|
|  |
16510 - Medium Height Silver Blade Hawken style Hawken Front Sight with 3/32” thick copper base 3/8" x .090 deep dovetail. Blade measures .275 Tall x .050 thick.
|
|
|
|
|
|  |
16515 - High Silver Blade Front Sight Hawken style on Copper BaseHawken Front Sight with copper base 3/8" x .090 deep dovetail, for 3/8” dovetail. Blade is .400 Tall x .050 thick.
|
|
|
|
|
|  |
16520 - Medium Silver Blade Thick Blade on 3/32” Brass BaseFront Sight with 3/8" dove tail with .080 deep (deeper than #16521). Blade is .275 tall x .080 thick. This is a thicker blade than some.
|
|
|
|
|
|  |

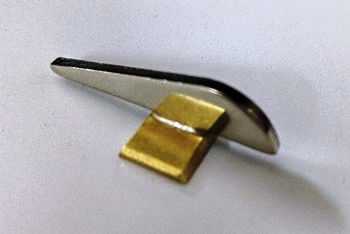

16521 - Medium Silver Blade Thick Blade on .062 Brass BaseThick bladed front sight with 3/8" dove tail, .062 deep dovetail (not as deep as #16520). Blade is .275 tall x .080 thick. This is a thicker blade than some.
|
|
|
|
|
|  |
16525 - High Silver Blade on 3/32” Brass Base Front sight with 3/8" dove tail. Blade is .400 tall x .080 thick.
|
|
|
|
|
| |
16526 - High Silver Blade on 3/32” Brass Base Front sight with 3/8" x 1/16" deep dovetail. Blade is .400 tall x .080 thick. (Thicker than some).
|
|
|
|
|
|  |

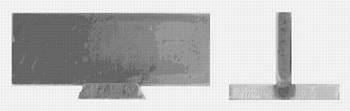

16530 - Silver Front Sight Blank brass base A silver blade front sight rectangular 1-1/8” long blank Blade is .410 tall X .080 thick on 3/32” thick brass base for 3/8” dovetails.
|
|
|
|
|
|  |

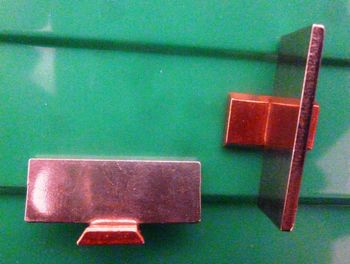

16530CB - Silver Front Sight Blank with copper baseA silver blade front sight rectangular 1-1/8” long blank on 3/32” thick copper base for a 3/8" dovetail. Blade is .410 tall x .080 thick.
|
|
|
|
|
|  |
16535 - Thick, High Silver Front Sight Hawken style Hawken Front Sight. Blade is .410 tall .080 thick with 3/8" x .090 deep dovetail. 3/32” thick copper base.
|
|
|
|
|
|  |

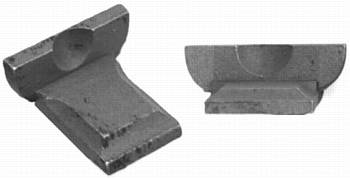

16540 - Low rear sight for up to 1 octagon barrels.585” (will clean up to 9/16”) dovetail, early X-Low rear sight. .230 tall, width of base is .540 and will work on up to 1" barrels.
|
|
|
|
|
|  |
20830 - Small Turtle – Steel front sight Fowler Front Sight - turtle without head. 1/4" tall, 1/4" wide and 7/16" long.
|
|
|
|
|
| |
20835 - Small Turtle – German silver front sight ***OUT OF STOCK***Fowler Front Sight - turtle without head. 1/4" tall, 1/4" wide and 7/16" long. ***OUT OF STOCK***
|
|
|
|
|
| |

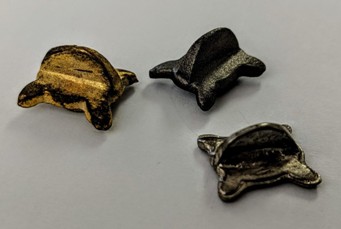

20840 - Small Turtle – Brass Fowler Front Sight - turtle without head. 1/4" tall, 1/4" wide and 7/16" long.
|
|
|
|
|
|  |
20880 - Brass .300 high Fleur-de-Leur sight .350 wide dovetail- 1/16" (thin base), blade is .065 wide x .300 high , cast Front Sight.
|
|
|
|
|
| |
20890 - G.S.Fleur-De-Leur Front sight German silver Fleur-de-leur front sight. .360 wide dovetail, .300 tall, thin base (1/16" deep).
|
|
|
|
|
| |
20900 - Steel Fleur-de-Leur cast front sight .350 thin base. blade is .065 wide and .300 high.
|
|
|
|
|
|  |

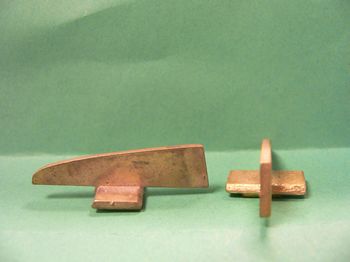

20910 - Cast Front Sight in brass As cast, in brass. The blade height is .340 and the blade thickness is .071. The dovetail width is 3/8", and the dovetail height is .065, made for a 1/16" thick dovetail.
|
|
|
|
|
| |
20920 - Cast front sight in German silverAs cast, in German silver. The blade height is .340 and the blade thickness is .071. The dovetail width is 3/8", and the dovetail height is .065, made for a 1/16" thick dovetail.
|
|
|
|
|
| |
20930 - Cast front sight in steel As cast, in steel. The blade height is .340 and the blade thickness is .071. The dovetail width is 3/8", and the dovetail height is .072, made for a 1/16" thick dovetail.
|
|
|
|
|
|  |
21110B - Johnson Peep Sight Only - brass A well designed, graceful, peep sight with a traditional flair, cast in *brass*. The sight's screw holes are countersunk to hide the screw heads of the two 6-48 thread MOUNTING SCREWS that ARE INCLUDED. Dimensions are 3 1/2" long X .35" wide and the base is 1/16" thick. Not adjustable for elevation, however, the front screw hole is egg shaped to allow a little bit of side to side adjustment by loosening the screw, moving over, and re-tightening it. There are two sizes of apertures available from Muzzleloader Builder's Supply. The larger is .093 (#21210) for quick target acquisition (or tired eyes), and the smaller .050 (#21200) to limit the field of view for target shooting. Hole spacing is .550". Iron. (Top of barrel to sight center is 7/16").
|
|
|
|
|
21110GS - Johnson Peep Sight Only - German SilverA well designed, graceful, peep sight with a traditional flair. The sight's screw holes are countersunk to hide the screw heads of the two 6-48 thread MOUNTING SCREWS that ARE INCLUDED. Dimensions are 3 1/2" long X .35" wide and the base is 1/16" thick. Not adjustable for elevation, however, the front screw hole is egg shaped to allow a little bit of side to side adjustment by loosening the screw, moving over, and re-tightening it. There are two sizes of apertures available from Muzzleloader Builder's Supply. The larger is .093 (#21210) for quick target acquisition (or tired eyes), and the smaller .050 (#21200) to limit the field of view for target shooting. Hole spacing is .550". Iron. (Top of barrel to sight center is 7/16").
|
|
|
|
|
