15080 - Right hand Durs Egg percussion lock This is the percussion version of the L&R Durs Egg and has the same external dimensions for ease of interchange. Model 1100P. Plate measures 5” x 15/16”.
|
|
|
|
|
|  |
15100 - Right hand Manton Percussion Lock - Model 1700PRH This lock is the percussion version of the Manton with identical sized plates for easy interchange. Plate is cut for 7/16” drum.
|
|
|
|
|
|  |
15120 - Left hand Manton percussion lock - Model 1800PLHL&R Manton percussion lock. Left hand.
|
|
|
|
|
|  |
15130 Hawken Lock uncut right hand Percussion-Model 100 Uncut version of the re-created T.Gibbons Hawken rifle lock. Will allow you to cut in your own fit to either drum or snail breech. This lock is identical in size and mechanical parts to the Gibbons lock #25720 below. Both have the stirrup-fit mainspring and fly on the tumbler necessary for use with all double set triggers. This uncut lock is available in both left and right models.
|
|
|
|
|
|  |
20020 - L&R Bedford Percussion LockThe Bedford percussion lock was copied from an original “John Amos” rifle. This lock has the internals of the Manton and is another fast lock. Dimensions are same as the flintlock in right hand only- Plate measures 5” x 7/8”. 7/16” drum.
|
|
|
|
|
|  |
21100 - L&R Classic Percussion Lock This is the percussion version of the L&R Classic series of locks and is completely interchangeable with the Classic Flintlock. It is styled to accurately portray what a flintlock converted to percussion would have looked like of the period with its cut-away pan. Dimensions 5-1/4 x 15/16, same as flint. Uses 1/2" drum.
|
|
|
|
|
|  |

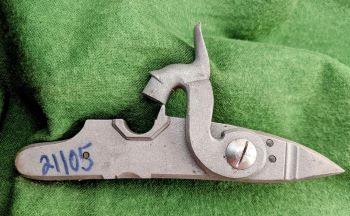

21105 - Left Hand- L&R Classic Percussion Lock L&R Classic Perc. Left Hand - L&R Model 2175P.
|
|
|
|
|
|  |

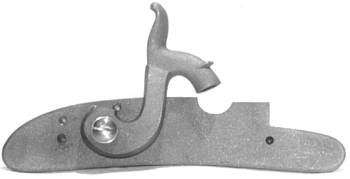

24980 - L&R Leman Percussion Lock This lock is completely interchangeable with the earlier flintlock style Late English shown above. Uses a 1/2” drum. To facilitate the change, use a 5/16-24 threaded drum and touch hole liner. Plate measures 5” long x 1”. Fly on the tumbler and stirrup-type mainspring. Available left or right. All lock internals are the same!
|
|
|
|
|
|  |

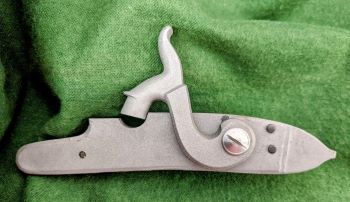

25060 - Left hand Durs Egg percussion lock -Model 1150P Left hand L&R Durs Egg percussion lock. Plate measures 5” x 15/16”.
|
|
|
|
|
|  |

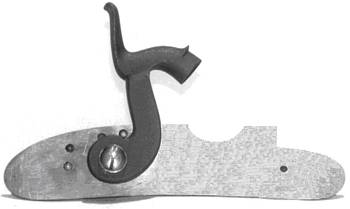

25720 - T.Gibbons Hawken Percussion Copied from an original T. Gibbons lock on an original Hawken, this lock was designed for a snail breech. It mates perfectly to the L&R hooked breech & tang #31380 for 15/16" barrels, and to #29790 for 1" barrels. Polished plate measures 4-7/8 x 1.
|
|
|
|
|
|  |

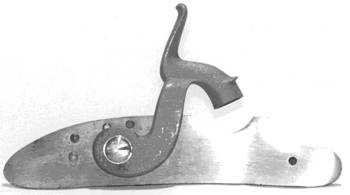

25730 - L&R Hawken WARRANTED Percussion LockThis lock has a slimmer plate than the Gibbons style lock. It is a recreation of the lock style typically seen in early J&S Hawken rifles circa 1825-1840 as well as guns from New England, later Pennsylvania and Southern guns. They were the commercial lock of the period. The Warranted lock has the cut-out for a snail breech with appropriate hammer and mates to L&R #31380 hooked breech for 15/16 barrels; and, hooked breech #29790 for 1 inch barrels. Polished plate 4-5/8 x 1 in right hand only.
|
|
|
|
|
|  |

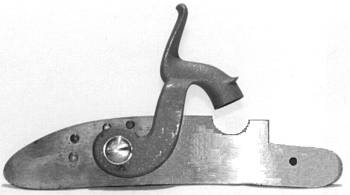

25740 - L&R Goulcher Percussion This lock is another copy from an original Hawken rifle. It is extremely similar to its cousin above. The only two differences are the hammer style and the specific cut-out for a 1/2” drum. Internals are identical. Plate measures 4-5/8” x 1” in right hand only.
|
|
|
|
|
|  |

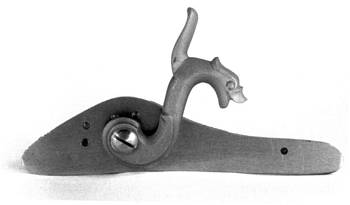

25750 - L&R Schuetzen Percussion Lock An excellent German and American Schuetzen style lock. Polished plate inside and out. Design produces a very short but powerful stoke. Plate measures 5” x 11/16” in right hand only.
|
|
|
|
|
|  |

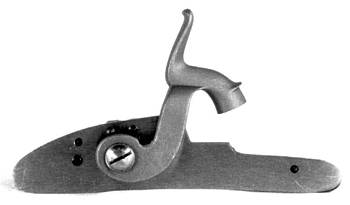

27500 - L&R Dimmick Percussion LockThis lock is another copy from an original Dimmick rifle. Plate measures 4-5/8” x 1” in right hand only. This lock requires the use of the English style breech which we do not have any more. With some creative filing and maybe welding, you can alter a Hawken hooked breech to fit this lock.
|
|
|
|
|
|  |

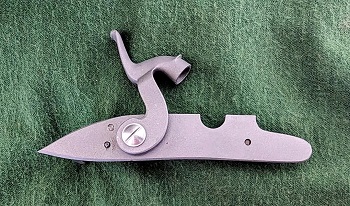

LK-1780P- Right hand Small Percussion lock This L&R lock can be fit to most small Siler inlets. 4 7/8" long, X 13/16" wide. This lock does have a fly. Cut for a 7/16" drum.
|
|
|
|
|
|  |

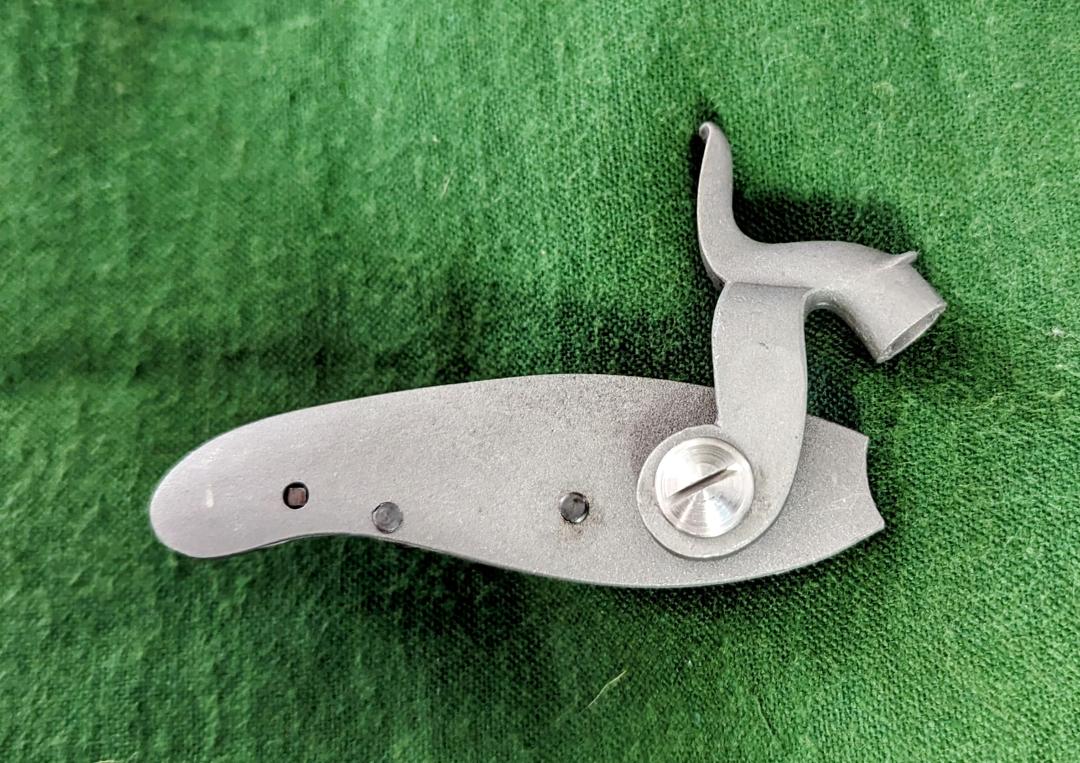

LOCK-DER - Right hand Derringer Percussion LockThis lock is a back action percussion Derringer lock. Plate is 3 1/8" long and .900 at the widest point.
|
|
|
|
