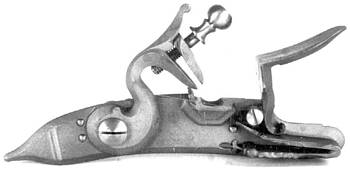

14910 - R. E. Davis Jaeger Flintlock - Model # 0017A dependable high quality flintlock for recreating very early Germanic and transitional rifles such as the Edward Marshall longrifle. Originally designed by Jack Haugh , measures 6” x 1”, and uses 7/8 wide flints, FLINT7E.
|
|
|
|
|
|  |
14925 - Chambers right hand large Siler flintlockThe plate measures 5 1/4" long by 1 " tall. This lock uses a #FLINT6FR which measures 3/4 X 7/8" (regular)" flints.
|
|
|
|
|
| |
14925B - Chambers right hand large Siler flintlock - brass plate The brass plate measures 5 1/4" long by 1 " tall. This lock uses #FLINT6FR which are 3/4 X 7/8" (regular)" flints.
|
|
|
|
|
|  |
14945D - Chambers small Siler Deluxe flintlock *** OUT OF STOCK *** With a deluxe tumbler. This model uses the larger 8-32 thread hammer screw. (If you built your small Siler lock from a kit, it will not be a Deluxe. It will have the smaller 6-40 thread hammer screw and the standard tumbler.) Use a full size 3/4" X 7/8" flint, #FLINT6FR. Plate measures 4 3/4" X 7/8". *** OUT OF STOCK ***
|
|
|
|
|
|  |
14965 - Chambers * left hand * large Siler flintlockThis left hand large Siler flintlock uses a 3/4" flint, #FLINT6FR.
|
|
|
|
|
|  |
14985 - Chambers large Siler percussion lockPlate measures 5 1/4" long by 1" tall.
|
|
|
|
|
|  |
15005 - Chambers small Siler Percussion Small Siler Percussion lock. 4 3/4" X 7/8" in size, cut for a 7/16" drum. Right hand only.
|
|
|
|
|
|  |
15025 - Chambers *left hand* large Siler percussionLeft hand large Siler percussion lock
|
|
|
|
|
|  |
15045 - Chambers Mountain Percussion Siler Southern Mountain Late Style Percussion Lock. 4 5/8" long by 15/16" tall, cut for a 1/2" drum. The bolster is thick enough to allow fitting to most snail breech assemblies.
|
|
|
|
|
|  |
15052 - *LEFT HAND* Chambers Mountain Percussion ***LEFT HAND***Siler Southern Mountain Late Style Percussion Lock. 4 5/8" long by 15/16" tall, cut for a 1/2" drum. The bolster is thick enough to allow fitting to most snail breech assemblies.
|
|
|
|
|
|  |

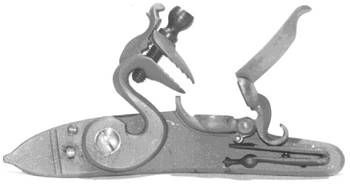

15070 - Right hand Durs Egg flintlock –L&R Model 1100 Durs Egg was a master English gunmaker. This copy of an original lock features a waterproof pan, pierced bridle, fly in the tumbler, stirrup-type mainspring, and a roller mounted frizzen on an internally polished plate. Available in both left and right hand models. This is one of L&Rs’ best locks. May require some final tuning and polishing to make this lock perform at its best design. Plate measures 5”x 15/16”, Uses 3/4” flints, #FLINT6FR.
|
|
|
|
|
|  |

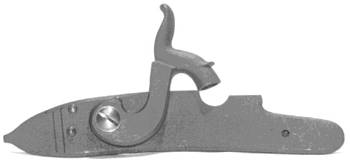

15080 - Right hand Durs Egg percussion lock This is the percussion version of the L&R Durs Egg and has the same external dimensions for ease of interchange. Model 1100P. Plate measures 5” x 15/16”.
|
|
|
|
|
|  |
15090 - Right hand Manton flintlock - L&R Model 1700L&R Manton Flintlock in right hand. Its small size(4 11/16 long x 27/32" wide) is best for 7/8 and smaller barrels. Uses 5/8" flints, #FLINT5FR.
|
|
|
|
|
|  |

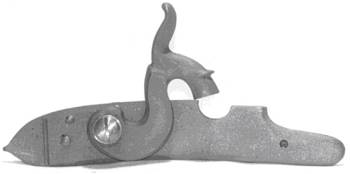

15100 - Right hand Manton Percussion Lock - Model 1700PRH This lock is the percussion version of the Manton with identical sized plates for easy interchange. Plate is cut for 7/16” drum.
|
|
|
|
|
|  |

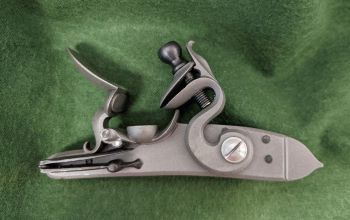

15110 - Left hand Manton flintlock – L&R Model 1800 L&R Manton Flintlock in left hand, (4 11/16 long x 27/32" wide). Uses 5/8" flints, #FLINT5FR.
|
|
|
|
|
|  |

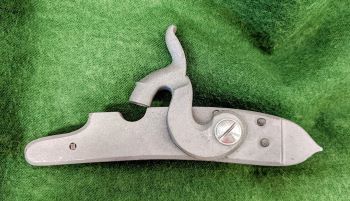

15120 - Left hand Manton percussion lock - Model 1800PLHL&R Manton percussion lock. Left hand.
|
|
|
|
|
|  |

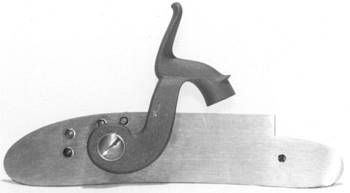

15130 Hawken Lock uncut right hand Percussion-Model 100 Uncut version of the re-created T.Gibbons Hawken rifle lock. Will allow you to cut in your own fit to either drum or snail breech. This lock is identical in size and mechanical parts to the Gibbons lock #25720 below. Both have the stirrup-fit mainspring and fly on the tumbler necessary for use with all double set triggers. This uncut lock is available in both left and right models.
|
|
|
|
|
|  |

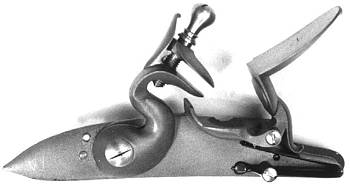

20010 - L&R Queen Anne Flintlock Copied from a nice original pistol and up-sized for versatility. From the Queen Ann period 1740-1750 period. Would be appropriate for trade guns, fowlers and other early rifles with European traits. Measures 5-9/16”x1-1/16.” Uses 3/4" flint #FLINT6FR.
|
|
|
|
|
|  |

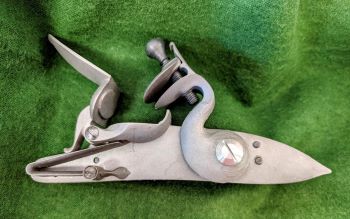

20015 - L&R Left hand Queen Anne flintlock L&R left hand Queen Anne flintlock - L&R Model 2075 . Uses 3/4" flint #FLINT6FR.
|
|
|
|
|
|  |

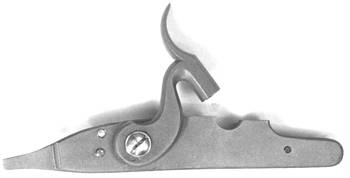

20020 - L&R Bedford Percussion LockThe Bedford percussion lock was copied from an original “John Amos” rifle. This lock has the internals of the Manton and is another fast lock. Dimensions are same as the flintlock in right hand only- Plate measures 5” x 7/8”. 7/16” drum.
|
|
|
|
|
|  |

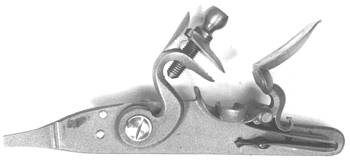

20030 - L&R Bedford Flintlock – L&R Model 1900 Bedford County rifles are among the most distinctive styles and require a lock that is true to the period and location. Only L&R makes the proper lock for a Bedford rifle. Available in percussion as well, each can interchange. Right hand only, measures 5-7/16” x 7/8”. Uses 5/8" flint #FLINT5E.
|
|
|
|
|
|  |

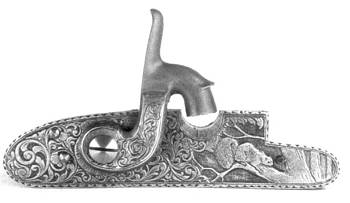

20050 - Squirrel Percussion Lock *** OUT OF STOCK ***One of the most well done cast engraved locks on the market today. This percussion lock is of contemporary design with rococo scrolls throughout the face. Right hand only measuring 4-7/16” x 1-1/32” Cut for 1/2" drum. By R.E. Davis Co. Brass plated lock is also available - #20051. *** OUT OF STOCK ***
|
|
|
|
|
|  |

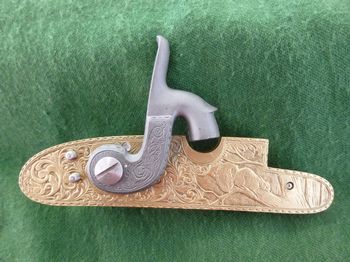

20051 - Squirrel Percussion lock with brass plate *** OUT OF STOCK ***One of the most well done cast engraved locks on the market today. This percussion lock is of contemporary design with rococo scrolls throughout the face. Right hand only measuring 4-7/16” x 1-1/32” Cut for 1/2" drum. By R.E. Davis Co. *** Brass plate *** OUT OF STOCK ***
|
|
|
|
|
|  |

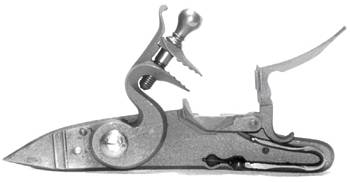

21080 - L&R Classic flintlock bridled frizzen - right hand The Classic locks have all the features which are appropriate for several rifle styles. Each Classic flintlock has a fly in the tumbler and a roller on the frizzen, but the model shown above has a bridle frizzen, which means the bridle screw is inserted from the back side of the lock plate into an extension of the pan. Measures 5-1/4” by 15/16.” Available in left and right models. Uses 3/4" flint #FLINT6FR or #FLINT6E.
|
|
|
|
|
21085 - Left Hand L&R Classic Flintlock - bridled L&R Classic Left Hand Bridled Flintlock – L&R Model 2175. Available in left or right hand. This is the left hand lock. Uses 3/4" flint #FLINT6FR.
|
|
|
|
|
