19135 - Graver handle mushroom shapedMushroom shaped handle, 1 3/8" wide, and 1 7/8" long.
|
|
|
|
|
|  |
19136 - Graver handle long pear shaped Pear or balloon shaped handle, 1 1/8" diameter at the 'ball', and 3 3/4" long.
|
|
|
|
|
|  |
19140 - Round Point Graver, Swiss made #53.Cuts a round bottom groove. Least used of the engravers. 4" long.
|
|
|
|
|
|  |
19150 - Onglette Graver, Swiss made I use this #2 onglette graver to do fine shading lines as well as lines that I need deep without the width of a square graver. Can be used for script type lettering.
|
|
|
|
|
|  |
20055 - Square Graver, Swiss madeSquare gravers were the most common graver used by original masters. They way they sharpened this graver, the sharpness of the angle, determined what line they ended up with. To reproduce original line engraving, this #6 graver is the one. 4" long.
|
|
|
|
|
|  |
23330 - Chasing hammer This hammer has a 1" diameter flat face for striking chasing gravers or to planish metal. The opposing end is a ball peen style for peening or riveting. It has a forged, hardened steel 4 oz. head fitted to a hardwood pistol grip handle. A very good hammer for the price.
|
|
|
|
|
|  |

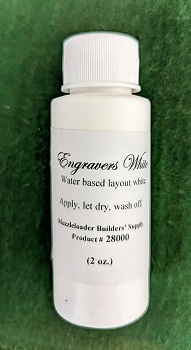

28000-Engraving & Layout WhiteA product in liquid form which aids an engraver with seeing his work on a white base. This product is simple to apply and easy to use. Simply paint on a very thin coat. When dry, use a soft lead pencil to draw your design on the white base. Engrave your drawn line then clean with any ammonia base cleaner like Windex or similar product.
|
|
|
|
|
|  |

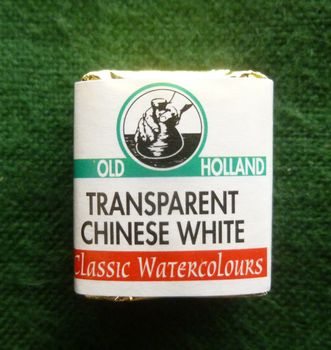

CHINAWHITE - Engravers white.2 ounce cake of dry engravers' white. To use this product, put a little saliva on your finger, smear it around on the cake until you have a small amount of paste on your fingertip. Smear the paste onto the piece to be engraved. It will dry very rapidly. Draw your design with a soft lead pencil. Product can be removed with a damp cloth. This small cake will last for years.
|
|
|
|
|
|  |

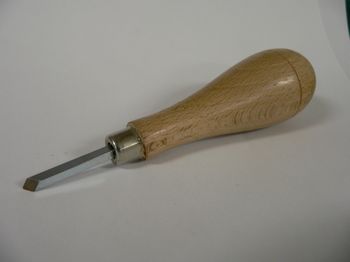

GRAVER-2 Cobalt sq graver handle This cobalt graver will stay sharp longer and allow you to cut harder metals than most gravers. It comes mounted in the handle for a better value. Tool bit is 1/8" square. 4" long.
|
|
|
|
|
|  |
GRAVER-F38 High speed steel flat bottom graver .020 wide pointRyan uses these gravers primarily for inletting silver or brass bands into metal (barrels). Will work well with .20 gauge wire. 4" long. Handle NOT included.
|
|
|
|
|
| |
GRAVER-F40 High speed steel flat bottom graver .046 wide pointRyan uses these gravers primarily for inletting silver or brass bands into metal (barrels). Will work well with .16 gauge wire. 4" long. Handle NOT included.
|
|
|
|
|
|  |
HANDLE-F1 - File handle for 3 inch to 6 inch files or engraversFile handle for 3" to 6" files or engravers, 1" diameter at the big end, and 4" long. Has a 1/8" starter hole.
|
|
|
|
|
|  |
HANDLE-F2 - File handle for 6 inch to 8 inch files or engraversFile handle for 6" to 8" files or engravers, 1 5/16" diameter at the big end, and 4 5/8" long. Has a .167 starter hole.
|
|
|
|
|
|  |
TOOL-HA1 - Wooden Mallet 1 1/4 diameter headThis hammer has a 2 1/2" long, 1 1/4" diameter flat face head for striking chasing gravers or chisels. It has a 6" turned wooden handle. This hammer is a nice, extremely light weight tool. 2 oz. total weight.
|
|
|
|
|

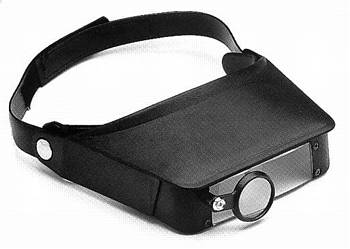

VISOR-1 - Magnifier An inexpensive magnifier with two lenses. Loop flips down for that extra close exam! Adjustable headband.
|
|
|
|
|
