16005 - 9/16-18 Std Plug for 3/4Straight Tang Breechplug for 3/4 inch diameter barrels with 9/16-18 threads
|
|
|
|
|
| |
16020 - 5/8-18 Std Plug 13/16 & 7/8”Straight Tang Breech plug for 13/16 and 7/8 inch barrels with 5/8-18 breech threads.
|
|
|
|
|
| |
16030 - 5/8-18 Std Plug 15/16&1”Straight Tang Breechplug for 15/16 and 1 inch barrels with 5/8-18 breech threads.
|
|
|
|
|
| |
16035 - 5/8-18 Std Plug 1 1/8” barrelStraight Tang Breechplug for 1 1/16" and 1 1/8" inch barrels with 5/8-18 breech threads that are .550 long.
|
|
|
|
|
| |
16040 - 3/4-16 Std Plug 15/16&1”Straight Tang Breechplug for 15/16 and 1 inch barrels with 3/4-16 breech threads.
|
|
|
|
|
| |
16050 - 3/4-16 Std Plug 1 1/8Straight Tang Breech plug for 1-1/8" barrels with 3/4-16 breech threads.
|
|
|
|
|
| |
16060 - 7/8-14 Std Plug 1-1/8Straight Tang Breech plug for 1-1/8" diameter barrels with 7/8-14 breech threads.
|
|
|
|
|
|  |
16065 - flared tang breechplug 9/16-18 for 3/4 barrelsFlared tang breechplug 9/16-18 threads for 3/4" barrels
|
|
|
|
|
| |
16075 - flared tang breechplug 9/16-18 for 1 barrelsFlared tang breechplug 9/16-18 threads for 1" barrels
|
|
|
|
|
| |
16080 - 5/8-18 Flared Plug 7/8 Flared Tang Breechplug for 13/16 and 7/8 breech plugs with 5/8-18 breech threads.
|
|
|
|
|
| |
16090 - 5/8-18 Flared Plug 15/16 &1Flared Tang Breechplug for 15/16 and 1 inch barrels with 5/8-18 breech threads. Tang is 2 1/4" long.
|
|
|
|
|
| |
16095 - 5/8-18 Flared Plug 1 1/8 barrelFlared Tang Breechplug for 1 1/16" and 1 1/8" barrels with 5/8-18 breech threads .550 long. Tang is 2 3/16" long.
|
|
|
|
|
| |
16100 - 3/4-16 Flared Plug 15/16&1Flared Tang Breechplug for 15/16 and 1 inch barrels with 3/4-16 breech threads.
|
|
|
|
|
| |
16105 - 3/4-16 Flared Plug 1-1/8Flared Tang Breechplug for 1-1/16 and 1-1/8 inch barrels with 3/4-16 breech threads.
|
|
|
|
|
|  |
16110 - 9/16-18 Long Tang Plug 7/8 Long Tang Breech plug for 13/16 and 7/8 barrels with 9/16-18 breech threads.
|
|
|
|
|
| |
16120 - 5/8-18 Long Tang Plug 7/8Long tang breech plug for 13/16 and 7/8 barrels with 5/8-18 breech threads. 6 3/4" long, not counting the threads.
|
|
|
|
|
| |
16130 - 5/8-18 Long Tang Plug 15/16 & 1 Long Tang Breech plug for 15/16 and 1 inch barrels with 5/8-18 breech threads. 6 3/4" long not counting the threads.
|
|
|
|
|
| |
16140 - 3/4-16 LongTangPlug 15/16&1Long Tang Breechplug for 15/16 and 1 inch barrels with 3/4-16 breech threads. 6 3/4" long, not counting the threads.
|
|
|
|
|
|  |
29790 - 3/4-16 Threads, Plug & Tang Set Percussion Hooked Breech plug & tang set for 1 inch barrels with 3/4-16 breech threads. Fits most percussion locks cut for snail. (This plug fits L&R Locks #25720 and #25730.)
|
|
|
|
|
| |
29795 - 3/4-16 Threads, Plug & Tang SetPercussion Hooked Breech plug & tang set for 1 1/8 inch barrels with 3/4-16 breech threads. Fits L&R percussion locks cut for snail. (This plug fits L&R Locks #25720 and #25730.)
|
|
|
|
|
| |
31380 - 5/8-18 Plug & Tang Set For 15/16” barrels Percussion Hooked Breechplug & tang set for 15/16" barrels with 5/8-18 breech threads. Fits #25720 L&R Gibbons and #25730 Hawken percussion locks, and others.
|
|
|
|
|
|  |

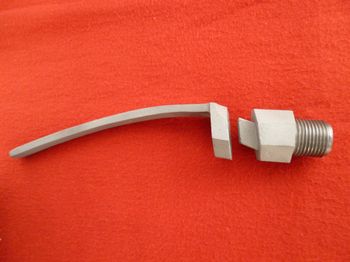

31385 - 3/4-16 Thds, Flint Plug & Tang Set For 1” Barrels Flint Hooked Breech plug & Tang Set for 1" barrels with 3/4-16 breech threads.
|
|
|
|
|
|  |

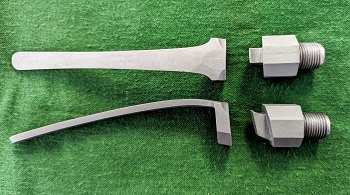

31386 - 5/8-18, Flint Plug & Tang Set For 15/16” Barrels Flint Hooked Breechplug & Tang Set for 15/16" barrels with 5/8-18 breech threads.
|
|
|
|
|
| |
31387 - 3/4-16 Thds, Flint Plug & Tang Set For 1 1/8” Barrels Flint Hooked Breech plug & Tang Set for 1 1/8" barrels with 3/4-16 breech threads.
|
|
|
|
|

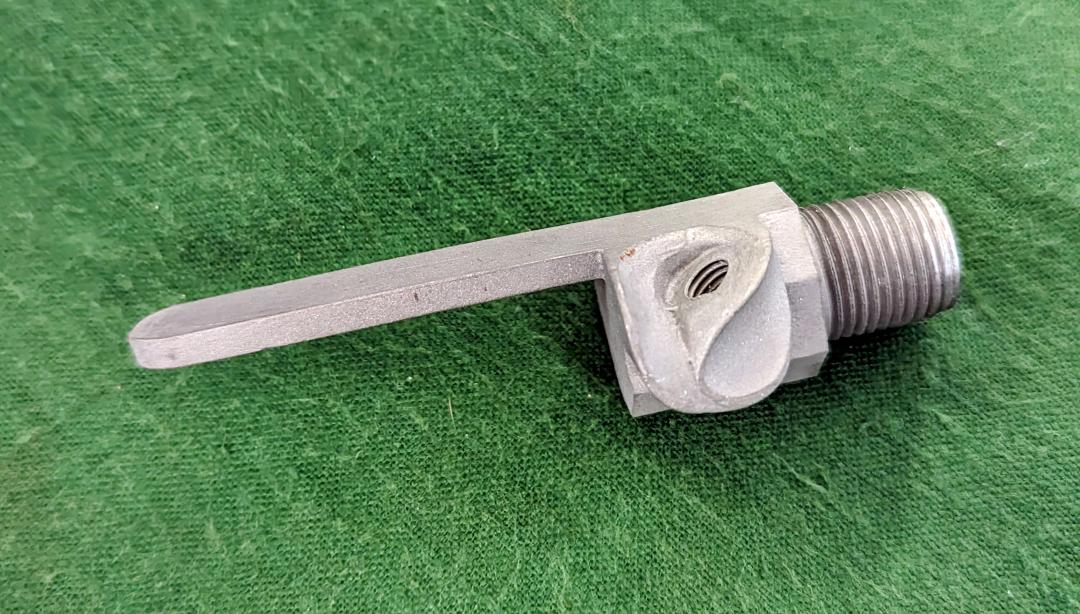

BPLUG-DER - 5/8-18 Threads for 13/16 barrel Percussion *solid* Breech plug & tang for 13/16 inch barrels with 5/8-18 breech threads. This is the breech plug designed for the L&R Derringer. Could be used for other projects as well.
|
|
|
|
|
