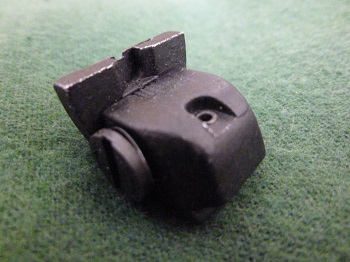

21115 - Modern adjustable Rear sight This is a modern adjustable rear sight. Most likely made for some sort of semi- auto pistol. It is made to fit a 3/8" dovetail .090 deep. Maximum height from barrel to top of sight is 1/2". Has about 3/16" of vertical adjustment. Has about 3/16" of windage adjustment. The adjustable blade in the rear of the sight is reversible and has a round notch in one side and a shallow square notch in the other. I do not know what these were originally made for and I consider them *pull off's* and some of the dovetails show scratching from being installed in a gun. If you do not care about being original, these could be fit to a muzzleloader to have the convenience of an adjustable sight.
|
|
|
|
|
|  |
21200 - .050 (Small) Aperture for Johnson Peep Sight .050 (Small) aperture for Johnson Peep Sight with a traditional flair. 7/32 X 40 threads.
|
|
|
|
|
| |
21210 - .093 (Large) Aperture for Johnson Peep Sight .093 (Large) aperture for Johnson Peep Sight with a traditional flair. 7/32 X 40 threads.
|
|
|
|
|
|  |
27570 - Cast Rear Sight3/8” dovetail, 1/2" wide and .400 high above dovetail (Southern Guns).
|
|
|
|
|
|  |
32325 - Milled Rear Sight pistolMilled Tiny Rear Sight This tiny little sight was made with one thing in mind! For pistols where you need to get the sight as low as possible on the barrel. .240 dovetail width. Thick .062 base. Sight measures 1/8" high above the dovetail.
|
|
|
|
|
|  |
35027 - Tiny front sight blade / blankCast in steel, this tiny front sight can be used as is or as a blank. .090 thick blade x.125 high. .230 dovetail.
|
|
|
|
|
|  |
FIBEROPT-G Fiber optic insert in greenFiber optic 1 1/2" long insert in green. Can be used in our #35097 or 35097B front sight.
|
|
|
|
|
|  |
FS-1803-B - Brass cast front sightNice wax cast front sight made for the 1803 Harpers Ferry rifle but suited for many projects. Blade measures .080 wide x .285 tall. Dovetail measures .375 wide x .062 deep.
|
|
|
|
|
| |
FS-1803-I - Iron cast front sightNice wax cast front sight made for the 1803 Harpers Ferry rifle but suited for many projects. Blade measures .080 wide x .285 tall. Dovetail measures .375 wide x .062 deep.
|
|
|
|
|
|  |
FS-39-B - Cast front sight in brassNice wax cast front sight suited for many projects. Blade measures .093 wide x .400 tall. Dovetail measures .375 (3/8) front to back. Sight base is .645 wide x .062 deep.
|
|
|
|
|
|  |

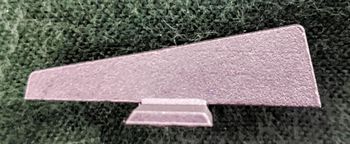

FS-39-I - Iron cast front sightNice wax cast front sight suited for many projects. Blade measures .093 wide x .400 tall. Dovetail measures .375 (3/8) front to back. Sight base is .645 wide x .062 deep. Length is 1 5/16".
|
|
|
|
|
|  |
FS-HEA-B - Brass Heart shaped Front Sight Brass heart shaped front sight. Dimensions are .550" long, .475 wide, .260 tall. To be soldered onto round barrels.
|
|
|
|
|
|  |
FS-HEA-GS - GS Heart shaped Front Sight Brass heart shaped front sight. Dimensions are .550" long, .475 wide, .260 tall. To be soldered onto round barrels.
|
|
|
|
|
|  |
FS-HOR-B Horse head front sight in brass Horse head front sight in brass. 7/16" tall, 3/4" long, to be soldered onto a round barrel (with the horse looking at you). You will get the rough casting with the sprew still on it so that you can get a hold of it to clean up and buff it as you wish (see the photo of the same sight in German silver). Made by Terry Jo
|
|
|
|
|
|  |
FS-HOR-GS Front sight horse head German silverHorse head front sight in German Silver. 7/16" tall, 3/4" long, to be soldered onto a round barrel (with the horse looking at you). You will get the rough casting with the sprew still on it (see the photo of the same sight in brass) so that you can get a hold of it to clean up and buff it as you wish. Made by Terry Jo
|
|
|
|
|
|  |
FS-HOR2-B Running horse head front sight in brassRunning horse head front sight in brass. The sight is .30 tall with a blade width of .085. The base is 5/16" wide X 1 5/16" long, and it is contoured, to be soldered onto a round barrel. You will get the rough casting with the sprew still on it so that you can get a hold of it to clean up and buff it as you wish. These are cast from an original sight that Terry Jo and Ryan made for one of Terry Jo's guns.
|
|
|
|
|
| |
FS-HOR2-GS Running horse head front sight in German silverRunning horse head front sight in German silver. The sight is .30 tall with a blade width of .085. The base is 5/16" wide X 1 5/16" long, and it is contoured, to be soldered onto a round barrel. You will get the rough casting with the sprew still on it so that you can get a hold of it to clean up and buff it as you wish. These are cast from an original sight that Terry Jo and Ryan made for one of Terry Jo's guns.
|
|
|
|
|
| |
FS-HOR2-I Running horse head front sight in steelRunning horse head front sight in steel. The sight is .30 tall with a blade width of .085. The base is 5/16" wide X 1 5/16" long, and it is contoured, to be soldered onto a round barrel. You will get the rough casting with the sprue still on it so that you can get a hold of it to clean up and buff it as you wish. These are cast from an original sight that Terry Jo and Ryan made for one of Terry Jo's guns.
|
|
|
|
|
|  |
FS-PA-39-B - Brass cast front sight *oversized*Nice ***Oversized*** wax cast front sight suited for fitting to a barrel that has the dovetail too large for standard front sight.. Blade measures .100 wide x .400 tall. Dovetail measures .465 front to back. Sight base is .465 wide x .125 deep. Length is 1.400".
|
|
|
|
|
| |

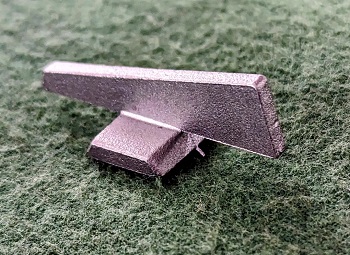

FS-PA-39-I - Iron cast front sight *oversized*Nice ***Oversized*** wax cast front sight suited for fitting to a barrel that has the dovetail too large for standard front sight.. Blade measures .100 wide x .400 tall. Dovetail measures .465 front to back. Sight base is .465 wide x .125 deep. Length is 1.400".
|
|
|
|
|
|  |

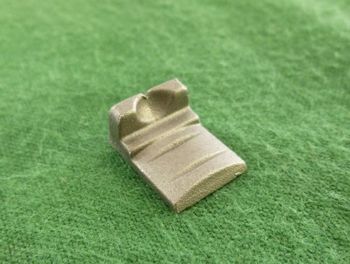

RS-1803 - 1803 Harpers Ferry rear sight 1803 Harper's Ferry rear sight. Dovetail is .695 long and .062 (1/16") deep. Sight is .220 tall with a .535 base width. Fits Harper's Ferry barrels and other barrel 1" or less wide.
|
|
|
|
|
|  |
RS-403-14- Feather finial rear sight 13/16 & 7/8 oct bbls Rear sight with a feather finial for 13/16" & 7/8" octagon or swamped barrels. Dovetail is .757 long and .052 (1/20") deep. Sight is .230 tall with a .535 base width.
|
|
|
|
|
|  |

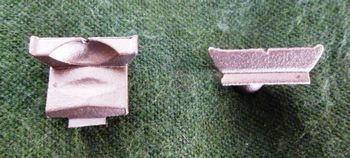

RS-AT-14 - Rear sight for 7/8 , 15/16 & 1 octagon barrelsRear sight for 7/8" , 15/16" & 1" octagon barrels. Dovetail is .495 long and .050 (1/20") deep. Sight is .170 tall with a .529 base width.
|
|
|
|
|
|  |
RS-BH-14 - Buckhorn rear sight for 13/16, 7/8 barrelsBuckhorn rear sight for 13/16", 7/8" octagon barrels. Dovetail is .375 long and .050 deep. Sight is .250 tall with a .529 base width.
|
|
|
|
|
RS-BH-16 - Buckhorn rear sight for 7/8 - 1 barrelsBuckhorn rear sight for 7/8", 15/16" or 1" octagon barrels. Dovetail is .435 long and .050 deep. Sight is .250 tall with a .590 base width.
|
|
|
|
|
