J & S Hawken Half Stock

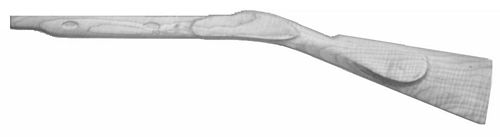

J & S Hawken Half Stock Photo

This stock is shaped after an original J&S Hawken halfstock rifle. One of several J & S models, this half stock rifle has the beaver cheek and caplock characteristics of the plains rifle. More changes  would  be made but the  basic  design and fine, thin lines would stay. Amazingly narrow buttstocks would terminate into knife thin combs at the wrist. Original guns were much finer than most are portrayed these days! This stock is designed to accommodate up to 1-1/8 inch barrels. If you order a 7/8 barrel, be prepared to remove a lot of wood if you want to be authentic, but it could be done. Originals were usually stocked in tough straight grained walnut and featured heavy weight straight tapered barrels in .50 cal and up predominately mounted in steel.The White” rifle was built in pure silver mountings and extensive inlays were profuse! It is in private hands now but really does exist! Right hand only.













MOUNTINGS
14805  Buttplate (Steel)
14820  Triggerguard (Steel)
13450  Rear Thimble (Steel)
14070
  Upper Thimbles (Steel)
20440  Sideplate (Steel)
13300  Nosecap (Steel - 1")
19530  Toeplate (Steel)
11090  Capbox (Steel)
16500  Front Sight (Silver Blade)
26050  Rear Sight (Hawken Ramp Sight) or
20870  Rear Sight (Authentic Hawken)

STANDARD SPECIFICATIONS
Straight Octagon barrels…......15/16, 1" or 1-1/8”
Drilled ramrod hole ..........................3/8” or 7/16"
Butt width x height……...…... .1-3/16” x 5-3/16”
Barrel Channel Length.....................................15"
Lock area ………….…....................1-3/4” x 7 ”
Width across the lock face …......................1-3/4”
Drop at the heel ……………......…..........3-1/4”
Trigger Pulls up to 15-1/2”

PRE-SHAPED STOCK
31220      P++ Grade Curly Maple
31230
      SP Grade Curly Maple
31235     SP+ Grade Curly Maple
31240     Cherry
30820      Inlet Lock (for Siler only)
30830      Inlet Trigger



















STANDARD  FITTINGS & PARTS
25730      L&R Hawken Percussion Lock
29790      L&R Hawken Hooked Breech for 1" Barrel
25050      L&R Hawken Double-Set trigger
19470      .54 x 1" x 36" Green Mountain Barrel
31710      1/4"x25 Stainless Steel Spitfire #11 Nipple
19630      1 ea, Oval Head 8-32 Lock Screws
16450      2 ea, Tang Screw 8-32
29740      2 ea. Barrel Wedges, Steel
19940      4 ea, Slotted Inlays, Steel
16380      1 Pkg of 10 Oval Head #3 Wood Screws
16390      1 Pkg of 10 Oval Head #5 Wood Screws
16400      1 Pkg of 10 Oval Head #8 Wood Screws
16825      3/8" Ram Rod w/ 8-32 Steel Tip
17290      Cleaning Jag, .54 Cal. 8-32s
17770      Fouling Scraper .54 Cal. 8-32
