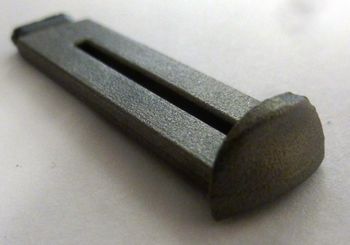

KEY-1803-I - Slotted wedge in steel for Harpers Ferry Slotted steel barrel key for 1803 Harper's Ferry Rifle. Shank is 1 5/16" long, Head is angled, .437 (7/16") wide and .100 (1/10th") thick.
|
|
|
|
|
|  |
RIB-13 - under rib 13/16 barrels Milled Barrel Rib with Lip. These ribs develop a curve due to the stress being released from the metal during machining. This curve in no way makes the rib unserviceable. In fact, it aids in soldering the rib to the barrel, but you may straighten them by hand if desired. 24" in length.
|
|
|
|
|
| |
RIB-14 - under rib for 7/8 barrels Milled Barrel Rib with Lip. These ribs develop a curve due to the stress being released from the metal during machining. This curve in no way makes the rib unserviceable. In fact, it aids in soldering the rib to the barrel, but you may straighten them by hand if desired. 24" in length.
|
|
|
|
|
| |
RIB-15 - under rib for 15/16 barrels *** OUT OF STOCK ***Milled Barrel Rib with Lip. These ribs develop a curve due to the stress being released from the metal during machining. This curve in no way makes the rib unserviceable. In fact, it aids in soldering the rib to the barrel, but you may straighten them by hand if desired. 24" in length. *** OUT OF STOCK ***
|
|
|
|
|
| |
RIB-16 under rib for 1 inch bblMilled Barrel Rib with Lip. These ribs develop a curve due to the stress being released from the metal during machining. This curve in no way makes the rib unserviceable. In fact, it aids in soldering the rib to the barrel, but you may straighten them by hand if desired. 24" in length.
|
|
|
|
|
| |
RIB-18 - under rib for 1 1/8 inchMilled Barrel Rib with Lip for 1 1/8" barrels. These ribs develop a curve due to the stress being released from the metal during machining. This curve in no way makes the rib unserviceable. In fact, it aids in soldering the rib to the barrel, but you may straighten them by hand if desired. 24" in length.
|
|
|
|
|
|  |
RIB-HF1803 - Harpers Ferry Under Rib Designed for US 1803 & 1814 Harpers Ferry barrels. 24 inch long rib is taller than normal and fits the round portion of the barrel. These ribs develop a curve due to the stress being released from the metal during machining. This curve in no way makes the rib unserviceable. In fact, it aids in soldering the rib to the barrel, but you may straighten them by hand if desired.
|
|
|
|
|
|  |
RIB-HOLLOW - Hollow under ribFor 13/16 to 1 1/8 inch barrels. These hollow ribs are the style that Hawken used on his rifles. The center is milled out at a 90 degree angle to match the two bottom side flats. This also reduces excess weight and makes it so this rib can be soldered onto round barrels. Also makes it more user friendly when fitting to tapered barrels. These ribs develop a curve due to the stress being released from the metal during machining. This curve in no way makes the rib un-serviceable. In fact, it aids in soldering the rib to the barrel, but you may straighten them by hand if desired. 24" long.
|
|
|
|
|
|  |
RIB-SC-540 Screw threaded 5-40 for attaching rib to barrel5-40 thread screw made to attach rib onto barrel.
|
|
|
|
|
| |
RIB-SC-648 Fine thread screw 6-48 made for attaching rib to barrelFine thread 6-48 screw made to attach rib onto barrel.
|
|
|
|
|
|  |
RIB-SG - Concave Shotgun Rib Concave Rib for Round Barrels. These ribs develop a curve due to the stress being released from the metal during machining. This curve in no way makes the rib unserviceable. In fact, it aids in soldering the rib to the barrel, but you may straighten them by hand if desired.
|
|
|
|
|
|  |

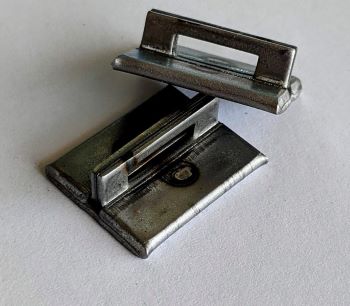

UL-12-S - 3/4” Folded underlug slotted Large Key 3/4" long dovetail *folded* Underlugs. Slotted for .090 thick x .375 wide keys. Dimensions are .722 long with end pinched down to fit 60 degree dovetail. Width is .575 and height is .236. Base thickness is .065. Slot width is .365 and and slot depth is .093. If your keys are a full 3/8" wide you will have to file the slot open slightly. These ***will not*** work for the large 1/8" x 3/8" keys.
|
|
|
|
